Macros

The Macros page lets you define, edit, execute, and manage multi-step request sequences. Macros are useful for automating workflows like authentication flows, multi-step API interactions, and session management.

Macros

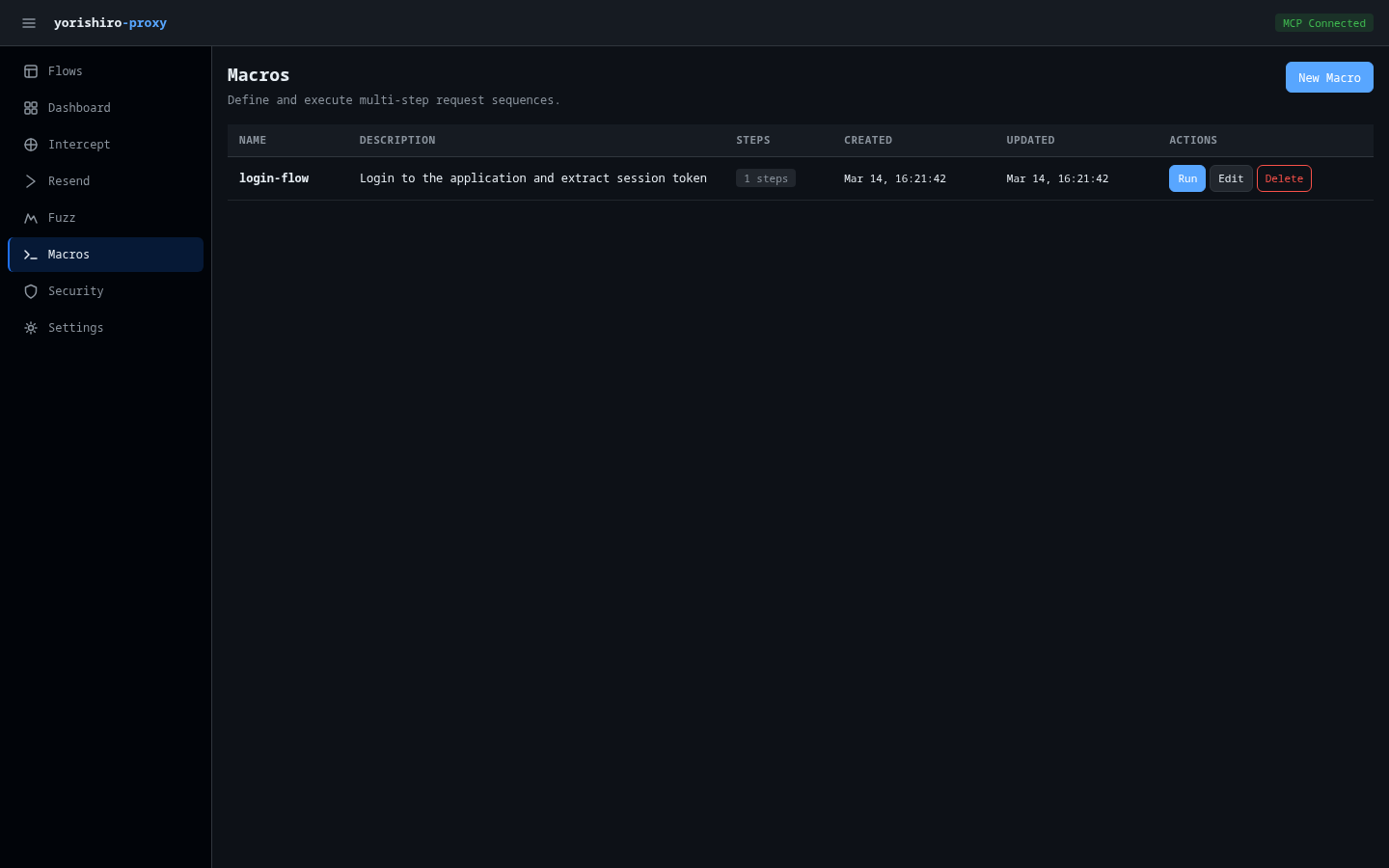

Macro list

The main page displays a table of all defined macros:

Column Description
Name Macro name (unique identifier)
Description Optional description text
Steps Number of steps in the macro (badge)
Created Creation timestamp
Updated Last modified timestamp
Actions Run, Edit, Delete buttons

Click any row to navigate to the macro detail/editor page.

Actions

  • New Macro -- Button in the header to create a new macro (navigates to /macros/new)
  • Run -- Execute the macro immediately
  • Edit -- Navigate to the macro editor
  • Delete -- Delete the macro (with confirmation dialog)

The macro list polls for updates every 5 seconds.

Macro editor

The detail page (/macros/{name}) provides a full editor with two tabs:

  • Editor -- Define and modify macro steps
  • Run & Results -- Execute the macro and view results

Defining steps

Each macro consists of one or more steps. Each step specifies:

  • Step ID -- Unique identifier within the macro
  • Flow ID -- The captured flow to use as the base request
  • Override method -- Optionally change the HTTP method
  • Override URL -- Optionally change the request URL
  • Override headers -- Key-value editor for header overrides
  • Override body -- Optionally replace the request body
  • Error handling -- What to do when a step fails:
    • Abort -- Stop the macro
    • Skip -- Skip the failed step and continue
    • Retry -- Retry the step (configurable retry count, delay, and timeout)

Variable extraction

Each step can define extraction rules to capture values from the response for use in subsequent steps. Each extraction rule specifies:

  • Variable name -- Name to store the extracted value (referenced as §variable_name§ in later steps)
  • From -- Whether to extract from the request or response
  • Source -- Where to find the value:
    • Header -- Extract from a specific header
    • Body (regex) -- Extract using a regular expression with capture group
    • Body (JSON path) -- Extract using a JSON path expression
    • Status code -- Capture the response status code
    • URL -- Capture the request URL
  • Default value -- Fallback value if extraction fails
  • Required -- Whether the macro should fail if extraction fails

Guard conditions

Steps can have conditional execution via guard conditions. A guard evaluates the result of a previous step and determines whether the current step should execute. Guard options include:

  • Step -- The step whose result to evaluate
  • Status code -- Match a specific status code
  • Status code range -- Match a range of status codes
  • Header match -- Match header key-value pairs
  • Body match -- Match body content
  • Extracted variable -- Check an extracted variable's value
  • Negate -- Invert the condition

Running a macro

From the Run & Results tab, click Run to execute the macro. Results are displayed as a table showing each step's outcome:

  • Step ID and flow ID
  • Response status code
  • Duration
  • Extraction results (variables captured from the response)
  • Error information (if the step failed)
