Fuzzer

The Fuzzer page lets you create, manage, and monitor fuzz testing campaigns. You can define payload positions, configure payload sets, control execution parameters, and analyze results -- all from the Web UI.

Fuzzer

Tabs

The page has two tabs:

  • Jobs -- List of all fuzz campaigns with status and controls
  • New Campaign -- Form for creating a new fuzz campaign

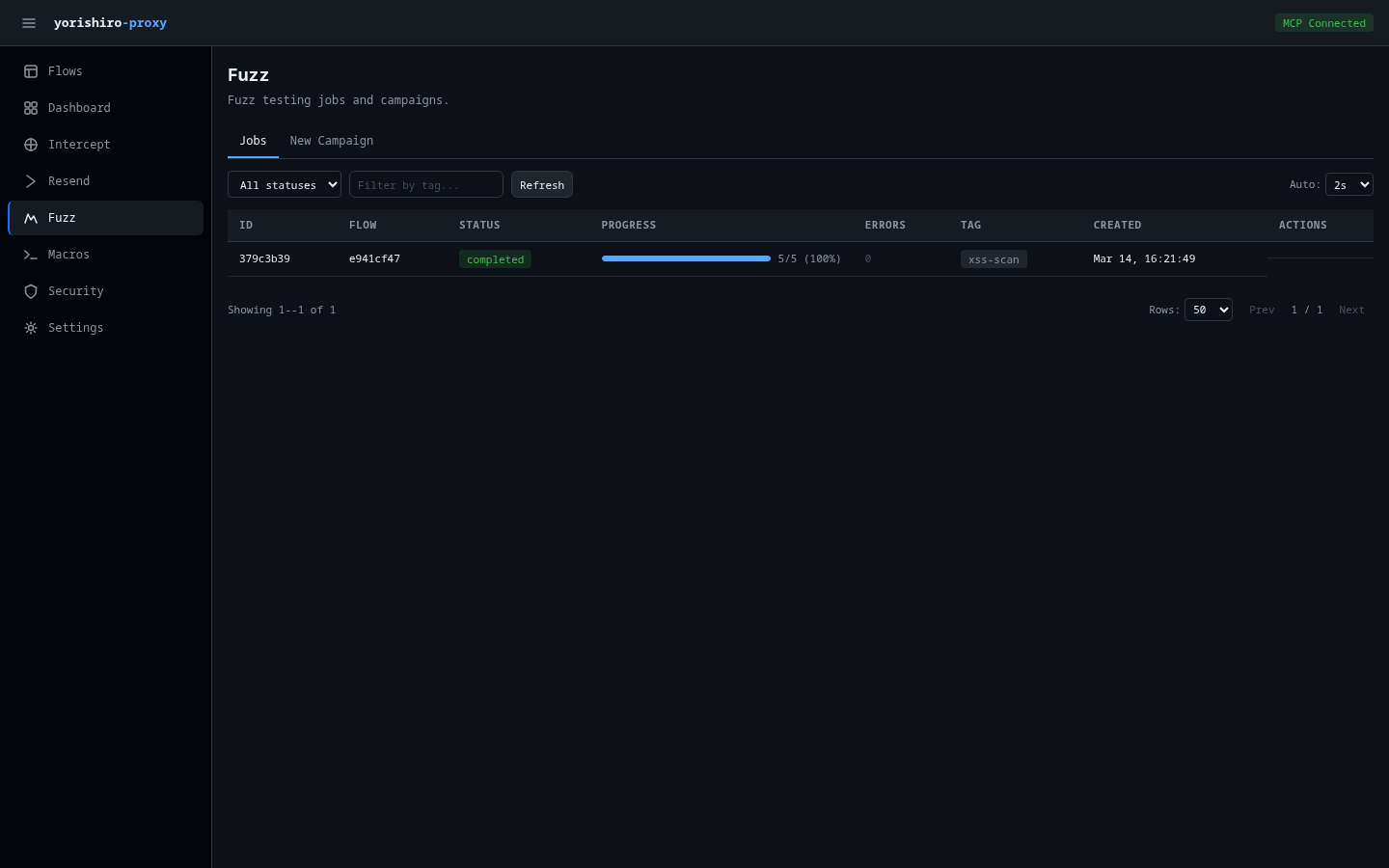

Jobs list

The Jobs tab displays a paginated table of all fuzz campaigns:

Column Description
ID First 8 characters of the fuzz job ID
Flow First 8 characters of the base flow ID
Status Color-coded badge: running (blue), completed (green), paused (yellow), cancelled/error (red)
Progress Visual progress bar with percentage and count (e.g., "150/500 (30%)")
Errors Error count, highlighted in red when non-zero
Tag Optional campaign tag
Created Creation timestamp
Actions Control buttons based on current status

Job actions

The available actions depend on the job's status:

Status Available actions
Running Pause, Cancel
Paused Resume, Cancel
Completed (none)
Cancelled (none)
Error (none)

Toolbar

The toolbar provides:

  • Status filter -- Dropdown to filter by job status (running, completed, paused, cancelled, error)
  • Tag filter -- Text input to filter by tag
  • Refresh -- Manual refresh button
  • Auto-refresh -- Polling interval selector (Off, 1s, 2s, 5s). Default is 2 seconds.

Click any job row to navigate to the results page for that campaign.

Creating a campaign

The New Campaign tab provides a comprehensive form for configuring a fuzz campaign.

Base flow

Enter the Flow ID of the captured request to use as the base for fuzzing.

Campaign settings

  • Attack type -- Choose between:
    • Sequential -- Test each position one at a time
    • Parallel -- Test all positions simultaneously
  • Tag -- Optional label for the campaign

Payload positions

Define where in the request to inject payloads. Click Add Position to add more. Each position has:

  • ID -- Unique identifier for this position (e.g., pos-1)
  • Location -- Where to inject: Header, Path, Query, Body (Regex), Body (JSON), or Cookie
  • Match pattern -- Pattern to find and replace (e.g., FUZZ)
  • Payload set -- Name of the payload set to use for this position (e.g., set-1)
  • JSON Path -- Only shown when location is "Body (JSON)"; specifies the JSON path (e.g., $.key)

Payload sets

Define the payloads to inject at each position. Click Add Payload Set to add more. Each set has:

  • Name -- Unique name referenced by positions (e.g., set-1)
  • Type -- One of:
    • Wordlist (values) -- Enter payloads directly, one per line
    • Range (numeric) -- Specify start, end, and step values for numeric sequences
    • File -- Path to a wordlist file on the server

Execution parameters

  • Concurrency -- Number of parallel requests (default: 1)
  • Rate limit (RPS) -- Maximum requests per second (blank for unlimited)
  • Delay (ms) -- Delay between requests in milliseconds
  • Timeout (ms) -- Request timeout in milliseconds (default: 30000)

Stop conditions

Optional conditions to automatically stop the campaign:

  • Error count -- Stop after this many errors
  • Stop status codes -- Comma-separated status codes that trigger a stop (e.g., 500,503)
  • Latency threshold (ms) -- Stop when response latency exceeds this value

Hooks

When macros are defined, a Hooks section allows attaching pre-send and post-receive hooks to the fuzz campaign.

Starting the campaign

Click Start Fuzz Campaign to begin. You are automatically switched to the Jobs tab to monitor progress.

Results page

Click a job row to navigate to the results detail page (/fuzz/{id}).

Job stats

The top of the results page shows:

  • Status -- Current job status badge
  • Progress -- Visual progress bar with percentage
  • Errors -- Error count
  • Avg duration -- Average response time across all results
  • Status distribution -- Breakdown of response status codes (e.g., "200: 450, 404: 30, 500: 20")
  • Tag -- Campaign tag if set

Job control buttons (Pause/Resume/Cancel) appear in the header for active jobs.

Results table

A filterable, paginated table shows individual fuzz results:

Column Description
# Result index number
Status Response status code, color-coded
Length Response body length
Duration Response time
Payloads Key-value pairs showing which payload was used at each position
Error Error message if the request failed (truncated to 40 characters)

Filtering and sorting

  • Status code -- Filter by specific status code
  • Body contains -- Search within response bodies
  • Sort -- Sort by status code, duration, or body length

Results auto-refresh every 2 seconds for active jobs and stop polling for completed jobs.

Result detail panel

Click a result row to open the detail panel showing:

  • Payloads -- Full payload key-value pairs used for this request
  • Error -- Full error message if applicable
  • Response headers -- Complete response header listing
  • Response body -- Full response body with content-type-aware syntax highlighting
