Flows

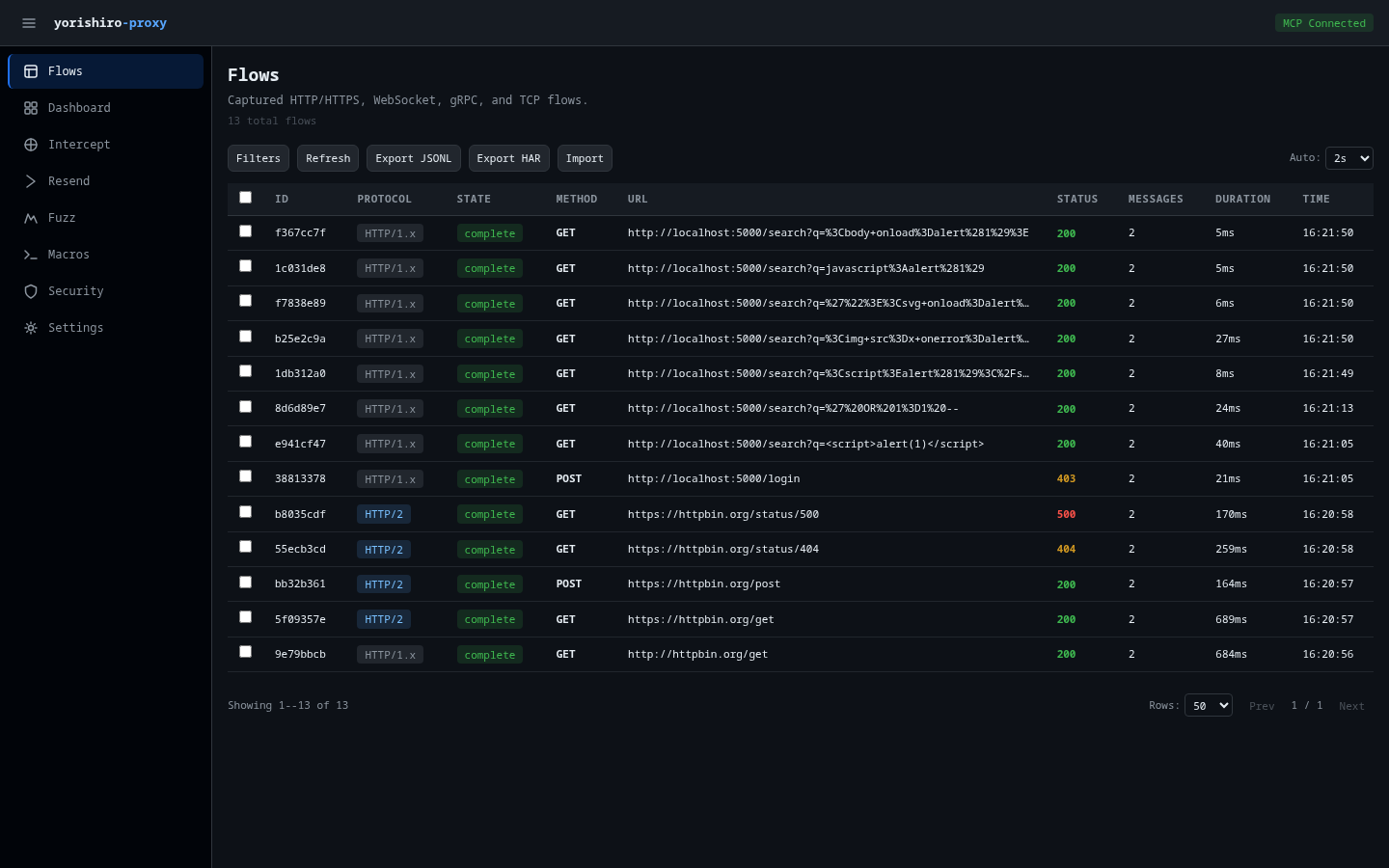

The Flows page is the primary interface for browsing captured network traffic. It displays all HTTP/1.x, HTTPS, WebSocket, HTTP/2, gRPC, and TCP flows in a paginated, filterable table.

Flows

Flow list

The main table shows one row per captured flow with the following columns:

Column Description
ID First 8 characters of the flow's unique identifier
Protocol Color-coded badge (HTTP/1.x, HTTPS, WebSocket, HTTP/2, gRPC, TCP, SOCKS5+HTTPS, SOCKS5+HTTP)
State active, complete, or error
Method HTTP method (GET, POST, etc.) or blank for non-HTTP protocols
URL Full request URL
Status HTTP response status code, color-coded by class (2xx/3xx/4xx/5xx)
Messages Message count (relevant for WebSocket and TCP flows)
Duration Request-response round-trip time
Time Timestamp when the flow was captured

Click any row to navigate to the flow detail view.

Filtering

Click the Filters button in the toolbar to reveal the filter panel. You can filter by:

  • Protocol -- Radio buttons for HTTP/1.x, HTTPS, WebSocket, HTTP/2, gRPC, TCP, SOCKS5+HTTPS, SOCKS5+HTTP, or All
  • Method -- Dropdown for GET, POST, PUT, DELETE, PATCH, HEAD, OPTIONS
  • Status -- Dropdown for specific status codes (200, 301, 400, 500)
  • Flow state -- Dropdown for active, complete, or error
  • Scheme -- Dropdown for https, http, wss, ws, tcp
  • Host -- Text input to filter by target hostname (debounced)
  • Blocked by -- Dropdown for target_scope, intercept_drop, rate_limit, safety_filter
  • URL pattern -- Text input with debounced search (300ms delay)
  • Body contains -- Text search within response bodies
  • Tag -- Filter by flow tag

The query API also supports technology and conn_id filters, which can be used via the MCP query tool.

Filters are applied in combination. When any text filter changes, the pagination resets to page 1 automatically.

Auto-refresh

The flow list supports configurable auto-refresh polling. Use the Auto dropdown in the toolbar to set the polling interval:

  • Off (manual refresh only)
  • 1s, 2s, 5s, or 10s

The default polling interval is 2 seconds. You can also click Refresh to manually reload the list.

Sorting

Click the Duration or Time column headers to sort the flow list by that field. Click again to clear the sort. A downward arrow indicator appears next to the active sort column.

Selecting flows

Each row has a checkbox for multi-select. Use the header checkbox to toggle select-all for the current page. When flows are selected, a bulk actions bar appears with the following options:

  • Export HAR -- Export selected flows as a HAR file
  • Delete -- Delete selected flows (with confirmation dialog)
  • Clear -- Clear the selection

Flow detail view

Clicking a flow row navigates to the detail page (/flows/{id}), which shows the full request and response data. The detail view includes:

  • Request headers -- Displayed in a key-value table
  • Request body -- With syntax-highlighted viewer
  • Response headers -- Displayed in a key-value table
  • Response body -- With content-type-aware rendering
  • Connection info -- TLS version, server address, timing data

For HTTP/2 and gRPC flows, the detail view also shows pseudo-headers (:method, :path, :authority, :scheme) and stream information.

Raw tab

When raw bytes are available for a flow, a Raw tab appears alongside the Headers and Body tabs. The Raw tab provides a hex dump view and a text view of the wire-observed bytes, giving you visibility into the exact data as captured on the network.

  • Toggle between Hex and Text display modes
  • Hex mode shows a standard hex dump with offset, hex values, and ASCII representation

Size safeguards

The raw bytes editor shows a warning when the payload exceeds 64 KB. The hex editor is disabled entirely when the payload exceeds 1 MB -- use Text mode for large payloads.

WebSocket message list

For WebSocket flows, an enhanced message list replaces the standard message table. Each frame row displays:

  • Sequence number -- #1, #2, etc.
  • Direction arrow -- green upward arrow for send (client-to-server), blue downward arrow for receive (server-to-client)

  • Opcode badge -- color-coded by frame type:

    Opcode Badge color
    Text Green (success)
    Binary Blue (info)
    Close Red (danger)
    Ping Yellow (warning)
    Pong Yellow (warning)

  • Size -- human-readable byte size

  • Timestamp -- time with millisecond precision
  • Content preview -- truncated payload preview

Click a message row to expand its detail panel, which provides:

  • Binary messages -- Toggle between Hex dump and Base64 display modes
  • Text messages -- Automatic JSON detection with Pretty / Raw toggle for JSON payloads
  • Close frames -- Parsed status code with description (e.g., 1000 Normal Closure) and close reason text
  • Metadata -- All frame metadata (opcode, masked, fin, etc.) displayed as key-value pairs

Export options

From the detail view, you can:

  • Copy as cURL -- Generate a cURL command that reproduces the request
  • Export HAR -- Download the flow as a single-entry HAR file
  • Resend -- Navigate to the Resender page with the flow pre-loaded

Exporting flows

The toolbar provides two export options:

  • Export JSONL -- Exports all flows (server-side) as a JSONL file via the manage tool with export_flows action
  • Export HAR -- Downloads selected flows (or all visible flows if none selected) as a HAR file directly in the browser

Importing flows

Click Import to open the import dialog. You can import flows from a JSONL file stored on the server:

  1. Enter the server-side file path (e.g., /path/to/flows.jsonl)
  2. Choose a conflict policy:
    • Skip -- Keep existing flows when IDs conflict
    • Replace -- Overwrite existing flows
  3. Click Import

The dialog displays import results including counts of imported, skipped, and errored entries.

Pagination

Below the table, pagination controls let you:

  • Navigate between pages with Prev / Next buttons
  • See the current page position (e.g., "1 / 5")
  • Change the number of rows per page (25, 50, or 100)
  • See the total flow count and current range
