Dashboard

The Dashboard page provides a real-time overview of proxy status, traffic statistics, and operational metrics. All widgets auto-refresh every 5 seconds.

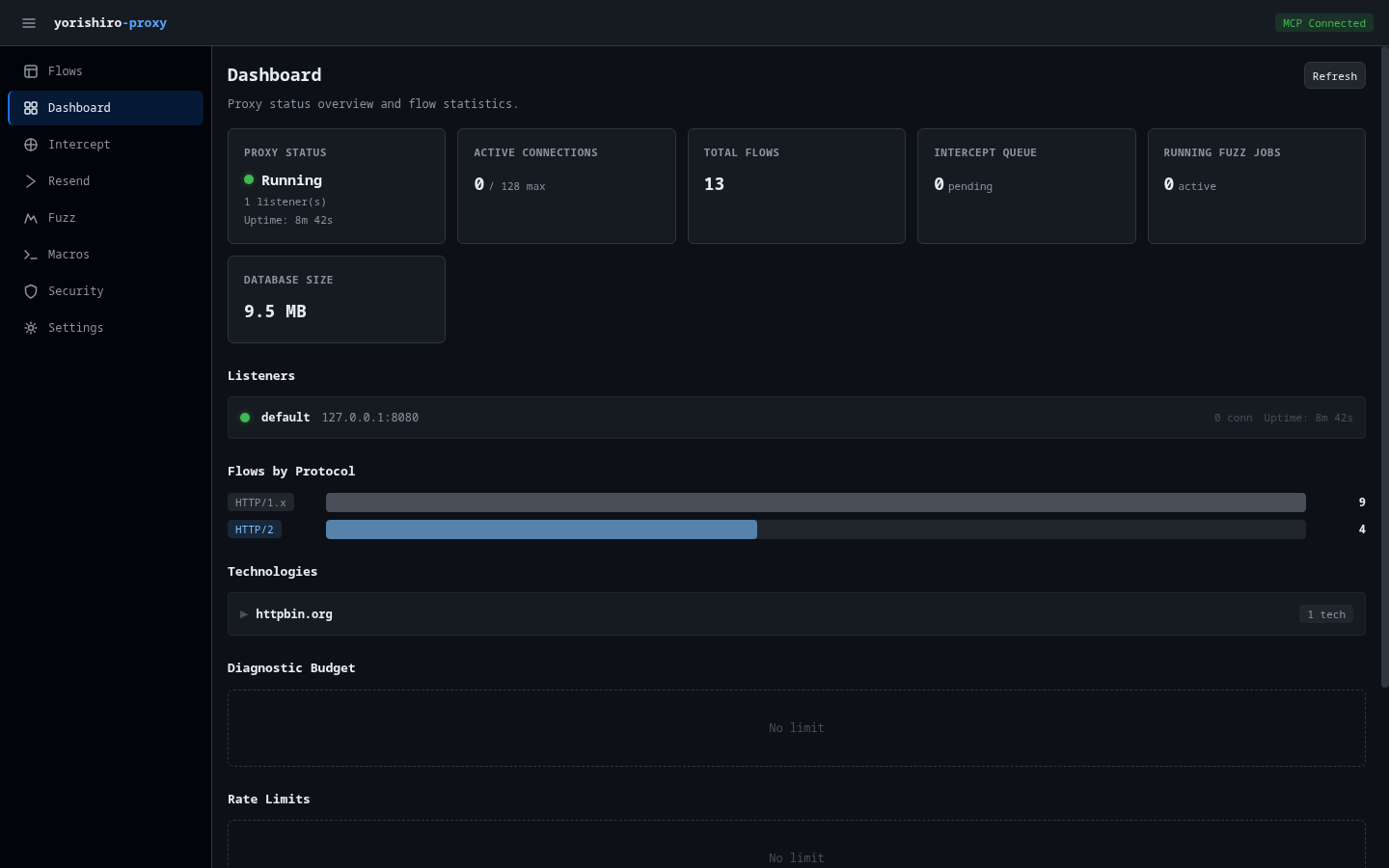

Dashboard

Summary cards

The top of the dashboard displays six summary cards:

Proxy status

Shows whether the proxy is Running or Stopped, along with the listener count and uptime when running.

Active connections

Displays the current number of active connections against the configured maximum (e.g., "12 / 1000 max").

Total flows

Shows the total count of captured flows across all protocols.

Intercept queue

Displays the number of requests pending in the intercept queue. The count highlights in yellow when items are waiting.

Running fuzz jobs

Shows the number of currently active fuzz campaigns. The count highlights in blue when jobs are running.

Database size

Displays the current size of the flow database (formatted as B, KB, MB, or GB).

Listeners

When the proxy is running, the Listeners section shows each active listener with:

  • Listener name and listen address
  • Active connection count
  • Uptime

TCP forwards

If TCP port forwarding rules are configured, this section displays each mapping as a visual arrow from the local port to the upstream target (e.g., :3306 -> db.internal:3306).

Flows by protocol

A horizontal bar chart breaks down captured flows by protocol. Each protocol gets a color-coded bar with a count:

  • HTTP/1.x -- Default (gray)
  • HTTPS -- Green
  • WebSocket -- Blue
  • HTTP/2 -- Blue
  • gRPC -- Yellow
  • TCP -- Red

Only protocols with at least one captured flow are shown.

Technologies

The Technologies widget displays detected web technologies grouped by host. When multiple hosts are detected, a filter input lets you search by hostname. Each host entry is an expandable accordion showing:

  • Technology name and optional version
  • Category -- Server, Framework, Language, CMS, CDN, WAF, JS Framework
  • Confidence level -- High, Medium, or Low (color-coded badge)

Technologies are grouped by category within each host for easy scanning.

Diagnostic budget

The Budget widget shows diagnostic budget usage when budget limits are configured:

  • Request usage -- Progress bar showing requests used vs. maximum allowed, with color changes at 80% (warning) and 95% (danger)
  • Duration limit -- Maximum session duration if configured
  • Stop reason -- Displayed when the proxy has been stopped due to budget exhaustion

When no budget limits are set, the widget shows "No limit".

Rate limits

The Rate Limit widget displays the effective rate limiting configuration:

  • Global RPS -- Maximum requests per second across all targets
  • Per-Host RPS -- Maximum requests per second to any single host

When no rate limits are configured, the widget shows "No limit".

Configuration

The Configuration section at the bottom summarizes key proxy settings:

Setting Description
Listen address Address the proxy is listening on
Upstream proxy Upstream proxy URL or "Direct"
Max connections Maximum concurrent connections
Peek timeout Protocol detection timeout (ms)
Request timeout HTTP request timeout (ms)
CA initialized Whether the TLS CA certificate is ready
